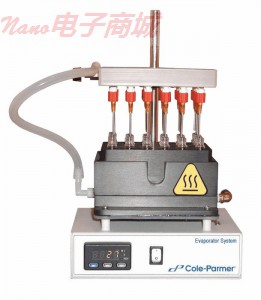

Cole-Parmer 099AEV9612S 加熱蒸發器/集中器

Cole-Parmer 099AEV9612S 加熱蒸發器/集中器

個人針頭提供給樣本更快，更連續的蒸發

在緊湊的裝置里就能進行經濟可靠的蒸發

模型能夠適應不同尺寸的試管和微孔板

快速蒸發一般郵寄溶劑-適用于醫藥，環境，高效液氧色譜和一般的研究應用。針頭閥能夠控制進入到均衡器里的氣體量，也能平衡均勻的提供到每個針頭的氣體量和蒸發。針頭閥能夠控制多種樣品的快速集中。每一個針頭都有可調節高度的不銹鋼制成的，其能1適應一系列的樣品尺寸。加熱蒸發器/集中器可以盛放8到24個樣本，并且能夠適用12到16mm直徑的試管。該設備也能處理EPA小瓶。二極管顯示細上溫度的示數能夠準確到±0.25%。該設備還包括一個加熱蓋帽以確保更快的蒸發。氣體加熱選擇確保了在氣體進入到樣本之前，樣本的溫度能夠維持不變。該設備包括整合控制加熱器，樣本盛放儀器和1.5英尺長，15兩層的針頭。

規格

全部位置                                 96

浴槽溫度                                 周圍溫度達212°F (100°C)

溫度控制準確率                           0.25%

顯示                                     二極管顯示器

頻率                                     50/60

溫度范圍                                 大約212°F (100°C)

大小                                     7.5"W x 5.5"D x 5"H

濃縮器類型                               加熱蒸發器

氣體流速                                 40 L/min

電壓                                     120

生產商編號                               099AEV9612S

品牌                                     Cole-Parmer

Indivdual needles provide equal flow of gas for faster, consistent evaporation of samples

Economical and reliable evaporation in a compact instrument

Models available to accommodate different-sized tubes and microwell plates

Rapidly evaporate common organic solvents—ideal for pharmaceutical, environmental, HPLC, GCMS, and general research applications. Needle valve controls the flow of gas into the equalizer manifold, which provides equal gas flow and uniform evaporation to each well. Needle valves ensure control for fast concentration of multiple samples. Each needle is made from 15-gauge stainless steel with easy height adjustment to accommodate a variety of sample sizes.Heated Evaporator/Concentratorssecurely hold from 8 to 24 sample vials, and can accommodate tubes from 12- to 16-mm dia. Units also available for handling EPA vials. LED display gives temperature readout with an accuracy of ±0.25%. Units include a heating block to ensure faster evaporation. Manifold gas heating option ensures temperature of sample is maintained by heating the gas before introduction into sample. Units include integrated controlled heater, sample holder, and 1.5"L 15-gauge needles.

Specifications

Total positions                          96

Bath temperature                         Ambient to 212°F (100°C)

Temp control accuracy                    0.25%

Display                                  4-digit LED

Power (Hz)                               50/60

Temp range                               ambient to 212°F (100°C)

Dimensions                               7.5"W x 5.5"D x 5"H

Condenser type                           Heated Evaporators

Gas flow                                 40 L/min

Power (VAC)                              120

Manufacturer number                      099AEV9612S

Brand                                    Cole-Parmer、
