高頻率42 kHz高頻率聲波清洗提供了更大的功率,增加了可靠性
掃描頻率通過創建重疊聲波,統一清潔
現在這些清潔工變換低頻交流電流為42千赫的高頻聲波通過壓電換能器。換能器產生的正弦波,這反過來又導致氣蝕的形成和在溶液中的微小真空泡暴崩。這些內爆徹底擦洗與溶液接觸的每一個表面,微妙并不苛刻。清潔工還有“掃”水箱清洗,創建重疊超聲波和消除不一致的清洗由于激烈的超聲波活動領域,提供了統一的頻率。
超級密封防漏外殼設有雙O型環和凹進的通風。304不銹鋼(SS)水箱經久耐用,耐沖擊聚丙烯外殼包圍。密封膜控制面板不受飛濺和泄漏。加熱器和機械定時器提供增強的清潔工 2-1/2- 熱清洗1-1/2-,5-1/2-加侖的清潔劑
清潔能力的理想有一個快速斷開漏的1/2-和3/4-加侖的清潔有一個傾倒口。不要使用易燃的溶劑來進行超聲波清洗,。必須使用這些清潔劑清潔液。使用插入托盤或燒杯定位這些超聲波清洗機蓋和燒杯。
包括:聚丙烯,整合手柄,防滑腳,和一個7 1/2-ft(2.1米)電源線。(115伏直流型包括插頭,230伏直流型不包括插頭)單獨訂購清潔溶液。
產品規格 | |
產品類型 | 超聲波清洗機 |
容量(加侖) | 2.5 |
罐體外形尺寸(“L) | 11.5 |
罐體外形尺寸(“W) | 9.5 |
罐體外形尺寸(“H) | 6 |
頻率輸出(赫茲) | 42000 |
功率(赫茲) | 50/60 |
功率(安培) | 0.8 |
電源(VAC) | 230 |
品牌 | 科爾 - 帕默 |
生產編號 | CPN-956-536(B5510E-MT) |
High-frequency 42 kHz high-frequency sound waves provide greater cleaning power and increased reliability
Sweep frequency provides uniform cleaning by creating overlapping sound waves
These cleaners transform low-frequency AC current into 42 kHz high-frequency sound waves via piezoelectric transducer. The transducer creates sinusoidal waves, which in turn cause cavitation—the formation and violent collapse of minute vacuum bubbles in the solution. These implosions thoroughly scrub every surface with which the solution makes contact, yet are not harsh on delicate items. Cleaners also feature "sweep" frequency that provides uniform cleaning thoughout the tank by creating overlapping ultrasonic waves and eliminating inconsistent cleaning due to areas of intense ultrasonic activity.

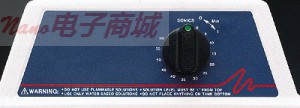

The leakproof housing features super-sealing double O-rings and recessed ventilation. The 304 stainless steel (SS) tank is surrounded by a durable, impact-resistant polypropylene housing. Sealed membrane control panel is impervious to splashes and spills.
Cleaners with heater and mechanical timer provide enhanced cleaning capability—ideal for heat cleaning
The 1-1/2-, 2-1/2-, and 5-1/2- gallon cleaners have a quick-disconnect drain.
The 1/2- and 3/4-gallon cleaners have a pour spout.
Never use ultrasonic cleaners with flammable solvents. A cleaning solution must be used with these cleaners. Use an insert tray or beaker positioning cover and beaker with these ultrasonic cleaners. Ultrasonic acticity is greatest starting about an inch from the bottom of the tank.
Never use ultrasonic cleaners with flammable solvents. A cleaning solution must be used with these cleaners. Use an insert tray or beaker positioning cover and beaker with these ultrasonic cleaners. Ultrasonic acticity is greatest starting about an inch from the bottom of the tank.
What's Included:
a polypropylene lind, integral handles, nonskid feet, and a 7 1/2-ft (2.1 m) power cord (115 VAC models include plug; 230 VAC models do not include plug). Order cleaning solutions separately.
|
Specifications |
|
Product Type |
Ultrasonic Cleaner |
Capacity (gal.) |
2.5 |
Tank dimensions (" L) |
11.5 |
Tank dimensions (" W) |
9.5 |
Tank dimensions (" H) |
6 |
Frequency output (Hz) |
42000 |
Power (Hz) |
50/60 |
Power (Amps) |
0.8 |
Power (VAC) |
230 |
Brand |
Cole-Parmer |
Manufacturer number |
CPN-956-536 (B5510E-MT) |
