Ismatec?ISM1090 Ecoline小型盒式磁帶泵，4通道，12輥，115 / 230 VAC

Ismatec?Ecoline小型盒式磁帶泵，4通道，12輥，115 / 230 VAC

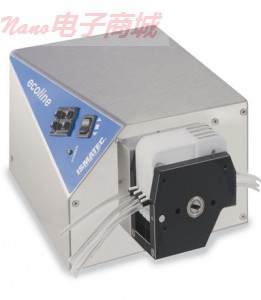

Ismatec? Ecoline minicartridge pump, 4 channels, 12 rollers, 115/230 VAC

泵頭和驅動器預裝，方便安裝和操作

這些經濟泵包括預裝的頭，簡單的設置和操作。啟動，停止和單開關回流。泵殼有傾斜的速度控制顯示屏，方便用戶訪問。不銹鋼外殼，確保耐久性。四個穩定腳允許您堆疊多個驅動器。使用轉子泵配備1.6毫米壁管。

型號78022-10和78022-20具有自定心的凸面滾子延長油管的使用壽命和溫柔流體完美的介質含有細胞培養。泵78022-50利用Masterflex 頭的Masterflex 管。泵78022-40和78022-60利用多通道的按鈕泵頭。轉速控制在1％。凸輥，確保自動定心減少油管磨損。控制驅動器的速度通過模擬輸入信號（0到5 VDC，0至10 VDC，0至20 mA或4至20 mA）遠程啟動/停止驅動器或反向通過觸點閉合（八針DIN）。從現有的儀器驅動輸入信號驅動功能。

CLICK'N'GO-TM ISMATEC SA

ISMA TEC-REG TM ISMATEC SA

Heads and drives are preassembled for easy setup and operation

These economical pumps include preassembled heads for simple setup and operation. Start, stop, and reverse flow with a single switch. Pump housings feature angled speed control displays for easy user access. Stainless steel housings ensure durability. Four stabilizing feet allow you to stack multiple drives. Pumps come with rotors for use with 1.6 mm wall tubing.

Models 78022-10 and 78022-20 have self-centering convex rollers which extend tubing life and are gentle on fluid—perfect for media containing cell cultures. Pump 78022-50 utilizes a Masterflex head and Masterflex?tubing. Pumps 78022-40 and 78022-60 utilize a multichannel pumphead.Push-button speed control in steps of 1% of rpm. Convex rollers ensure automatic centering—minimizes tubing wear. Control drive speed remotely via an analog input signal (0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, or 4 to 20 mA); start/stop drive or reverse direction via contact closure (eight-pin DIN). Input signals from your existing instruments actuate drive functions.

CLICK'N'GO—TM Ismatec SA

?

ISMA TEC—Reg TM Ismatec SA
