Etatron DLXB PH / ORP泵控制系統，20升/小時，最大3巴的壓力，腳安裝，115伏交流

Etatron DLXB PH / ORP泵控制系統，20升/小時，最大3巴的壓力，腳安裝，115伏交流

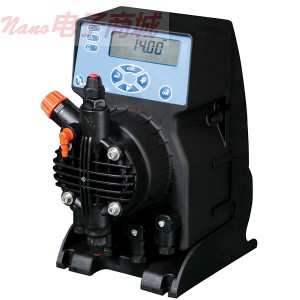

Etatron DLXB pH/ORP Pump Control System, 20 L/hr, 3 bar max pressure, foot-mount, 115 VAC

綜合了控制器和計量泵，簡化了系統設置

控制系統能接受的pH或ORP電極更加方便

開/關或比例控制模式允許強大的過程控制

集成控制器和計量泵控制過程pH或ORP液位節省您的時間，金錢和空間。這些電磁驅動隔膜計量泵和控制器由耐酸塑料外殼包裹著防護等級IP65。聚丙烯泵頭手動排氣，PTFE隔膜，和Viton?防潮。泵控制系統接受液位轉換器（單獨訂購）。背光LCD顯示屏的分辨率為0.01 pH或1毫伏。

控制器是可切換開/關或比例控制應用，并具有手動溫度補償。控制可切換遲滯和延時功能，可以微調。注射頻率可在0-100％之間切換，最大抽水流速。

控制系統接受BNC連接器電極沒有溫度補償 單獨訂購電極

齊全規格見說明書

包含： 6英尺（1.8米）長透明PVC和PE（3/16"ID×1/4"OD）加權濾波器，和6英尺（1.8米）的美國標準電源線。

Integrated controller and metering pump simplify system setup

Control systems are able to accept pH or ORP electrodes for added convenience

On/off or proportional control modes allow for robust process control

Control the pH or ORP levels of your process with an integrated controller and pump—saves you time, money, and space. These solenoid-driven, diaphragm metering pumps and controllers are encased with an IP65, acid-resistant plastic housing. Polypropylene pump heads have manual air bleed, PTFE diaphragm, and Viton?wetted parts. Pump control systems accept level switches (order separately). Backlit LCD display has resolution of 0.01 pH or 1 mV.

Controllers are programmable for on/off or proportional control applications and have manual temperature compensation. Control can be fine-tuned by programmable hysteresis and delay functions. Frequency of injections is programmable between 0 to 100% of the maximum flow rate of the pump.

Control systems accept electrodes with BNC connectors and no temperature compensation; order electrodes separately.

See instruction manual for complete specifications

What's Included:

6-ft (1.8-m) length of both clear PVC and PE tubing (3?16" ID x 1?4" OD), weighted filter, and 6-ft (1.8-m) U.S. standard power cord.
