Masterflex 77964-20 I / P數字流程泵系統的不銹鋼外殼，易裝泵頭0.1至650轉，90到260 VAC

Masterflex I / P數字流程泵系統的不銹鋼外殼，易裝泵頭0.1至650轉，90到260 VAC

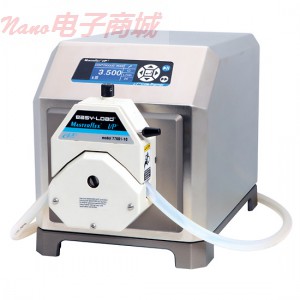

Masterflex I/P Digital Process Pump System with Stainless Steel Housing and Easy-Load Pump Head; 0.1 to 650 rpm, 90 to 260 VAC

Precision digital drives offer three dispensing modes and precision low-maintenance motors

Flow range is 0.001 LPM to 8.0 LPM with included tubing

Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.

Menu-driven interface lets you select one of seven languages for programming and operation

Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 to 9,999 secs)

Anti-drip function ensures dispense accuracy

Reversible motor—purge tubing before or after pumping; pump fluid in either direction

Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio

Remote control capabilities via watertight connection

– Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V

– Pumping direction requires open collector or contact closure

– Start/stop/purge requires open collector or contact closure

– Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector

Model 77964-20 features a 316 stainless steel housing with an anodized aluminum base. Ideal for pharmaceutical, dairy, biotech, and food and beverage applications.

These pump systems give you rugged performance and precise digital control. Ideal for fluid transfer, dispensing, and metering applications in laboratory, process, and industrial environments including pharmaceutical, food & beverage, dairy, chemical, manufacturing, and water treatment.

Precision drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume. To increase dispense accuracy and prevent dripping, programmable anti-drip function briefly reverses motor at end of dispense cycle. Precise PWM speed control (±0.1%) maximizes accuracy and efficiency while the brushless motor gives you quiet, maintenance-free reliability. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings.

The IP66, NEMA 4X rated housings are completely sealed, easy-to-clean, and resistant to commonly used cleaning and sanitizing solutions. The reversible, maintenance-free brushless motor offers a full complement of remote control capabilities allowing easy integration into your automated processes. Drives feature a membrane keypad for easy programming. Select tubing size and enter desired flow rate—drive locks in required rpm.
What's Included:
pump head, tubing, and 6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering



Specifications
Min flow rate (LPM)		0.001
Max flow rate (LPM)		8.0
Tubing		C-Flex ULTRA I/P 73 06434-73 (10 ft)
Drive		77420-10
Control type		Digital Variable Speed
Pump head		77601-10
rpm		0.1 to 650
Power (VAC)		115 / 230
Power (Hz)		50/60
Power (Amps)		4.5 / 2.5
Manufacturer number		77964-20
Product Type		Peristaltic Pump
Pump Series		I/P
Washdown capable		Yes
Brand		Masterflex

精密數字驅動器提供三種分配模式和精度低維護電機

流量范圍為0.001 LPM 8.0 LPM包括油管

圖形液晶顯示四種工作模式，連續運行，定時分配，復制分配量分配。泵的性能不斷。

菜單驅動的界面，可以選擇七種語言，編程及操作

免除毫升每毫升容積分配，0.001?9999毫升;復制1至9,999點膠周期;或SEC時間每次分配周期之間的時間間隔（1到9,999秒）

防滴漏功能，確保免除準確性

在任一方向可逆電機吹掃之前或之后抽泵液管

無刷免維護電機提供±0.1％的速度控制精度1量程比6000

遠程控制功能，通過水密連接

- 可擴展速度控制輸入0至20 mA，4至20 mA，0?10 V

- 抽水方向需要集電極開路或觸點閉合

- 啟動/停止/清除需要集電極開路或觸點閉合

- 可擴展的轉速計輸出0至20 mA，4至20 mA，0?10 V，集電極開路

型號77964-20 316不銹鋼外殼，陽極氧化鋁基地。制藥，乳品，生物技術，食品和飲料應用的理想選擇。

這些泵系統為您提供堅固耐用的性能和精確的數字控制。流體輸送，分配，在實驗室和計量應用過程中，包括制藥，食品飲料，乳品，化工，制造，水處理和工業環境的理想選擇。精密驅動器具有可編程分配間隔，可以讓你設置之間的延遲免除方便，自動點膠周期按時間或按體積。為了提高分配的準確性和防止滴水，可編程防滴漏功能簡要電機反轉點膠周期結束。精確的PWM速度控制（±0.1％）的精度和效率最大化，而 ??無刷電機，為您提供安靜，免維護可靠性。程序校準，確保分配和顯示精度驅動器存儲校準值每管大小。計劃器通過簡單的鍵盤膜，鍵盤鎖定/解鎖功能保護設置，NEMA 4X，IP66額定外殼是完全密封，易清潔，耐常用的清洗和消毒液。可逆的，免維護的無刷電機提供了完整的遠程控制功能，方便地集成到自動化流程。驅動器配有鍵盤膜，易于編程。選擇管的大小，然后輸入所需的流量驅動器鎖在所需的轉速。包括：泵頭，油管和6英 ??尺（1.8米）線與IEC 320/CEE22插座。這些模型是特定國家的插頭/電源線出貨，訂貨時請注明最終目的地

?

產品規格
最小流量（LPM）		0.001
最大流量（LPM）		8
管道		C-Flex的ULTRA I / P 73  06434-73（10英尺）
驅動		77420-10
控制類型		數字變頻調速
泵頭		77601-10
轉		0.1至650
電源（VAC）		115/230
功率（赫茲）		50/60
功率（安培）		4.5 / 2.5
制造商數量		77964-20
產品類型		蠕動泵
水泵系列		I / P
直沖能力		是
牌		的Masterflex

?

?
