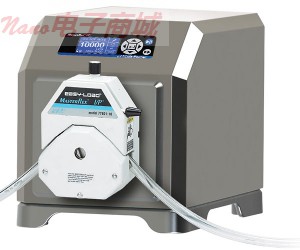

Masterflex I / P數字處理驅動器與不銹鋼外殼，0.1至650轉，90到260 VAC
Masterflex I/P Digital Process Drive with Stainless Steel Housing; 0.1 to 650 rpm, 90 to 260 VAC
Precision digital drives offer three dispensing modes and precision low-maintenance motors
Minimum flow rate is 0.0006 LPM (0.0001 GPM); maximum flow rate is 19 LPM (5.0 GPM) with the I/P High-Performance pump head or 26 LPM (6.9 GPM) with two stacked I/P Easy-Load or Standard pump heads
Graphical LCD shows four operating modes continuous run, timed dispense, copy dispense, volume dispense. View pump performance continually.
Menu-driven interface lets you select one of seven languages for programming and operation
Dispense by mL—volume in mL of each dispense, 0.001 to 9999 mL; Copy—1 to 9,999 dispense cycles; or SEC—time interval between each dispense cycle (1 to 9,999 secs)
Anti-drip function ensures dispense accuracy
Reversible motor—purge tubing before or after pumping; pump fluid in either direction
Brushless, maintenance-free motor offers ±0.1% speed control accuracy with a 6000 to 1 turndown ratio
Powerful motors let you stack 2 pump heads with any tubing formulation for increased flow rates and for multichannel applications
Remote control capabilities via watertight connection
– Speed control input scalable 0 to 20 mA, 4 to 20 mA, or 0 to 10 V
– Pumping direction requires open collector or contact closure
– Start/stop/purge requires open collector or contact closure
– Tachometer output scalable 0 to 20 mA, 4 to 20 mA, 0 to 10 V, open collector
Model 77420-10 features a 316 stainless steel housing with an anodized aluminum base. Ideal for pharmaceutical, dairy, biotech, and food and beverage applications.
These full-featured drives give you rugged performance and precise digital control. Ideal for fluid transfer, dispensing, and metering applications in laboratory, process, and industrial environments including pharmaceutical, food & beverage, dairy, chemical, manufacturing, and water treatment.
Precision drives feature a programmable dispense interval that lets you set the delay between dispense cycles for convenient, automated dispensing by time or by volume. To increase dispense accuracy and prevent dripping, programmable anti-drip function briefly reverses motor at end of dispense cycle. Precise PWM speed control (±0.1%) maximizes accuracy and efficiency while the brushless motor gives you quiet, maintenance-free reliability. Programmed calibration ensures dispense and display accuracy—drive stores one calibration value per tubing size. Program the drive via the simple membrane keypad; keypad lock/unlock feature protects settings.
The IP66, NEMA 4X rated housings are completely sealed, easy-to-clean, and resistant to commonly used cleaning and sanitizing solutions. The reversible, maintenance-free brushless motor offers a full complement of remote control capabilities allowing easy integration into your automated processes. Drives feature a membrane keypad for easy programming. Select tubing size and enter desired flow rate—drive locks in required rpm.
What's Included:
6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering
| Specifications | ||
| Max flow rate (mL/min) | 26000 | |
| Min flow rate (mL/min) | 0.6 | |
| Control type | Digital Variable Speed | |
| Flow rate with I/P 26 tubing (LPM) | 0.01 to 4.0 | |
| Flow rate with I/P 26 tubing (GPM) | 0.002 to 1.1 | |
| Flow rate with I/P 70 tubing (GPM) | 0.002 to 2.1 | |
| Flow rate with I/P 88 tubing (LPM) | 0.02 to 17.0 | |
| Flow rate with I/P 82 tubing (LPM) | 0.02 to 13.0 | |
| Flow rate with I/P 70 tubing (LPM) | 0.01 to 8.0 | |
| Flow rate with I/P 88 tubing (GPM) | 0.005 to 4.5 | |
| Product Type | Masterflex I/P Drive | |
| Flow rate with I/P 82 tubing (GPM) | 0.005 to 3.5 | |
| Flow rate with I/P 89 tubing (LPM) | 0.03 to 19.0 | |
| Flow rate with I/P 73 tubing (LPM) | 0.01 to 8.0 | |
| Flow rate with I/P 73 tubing (GPM) | 0.002 to 2.1 | |
| Flow rate with I/P 89 tubing (GPM) | 0.007 to 5.0 | |
| Power (Amps) | 4.5 A at 115 VAC; 2.5 A at 230 VAC | |
| Motor (hp) | 3/8 | |
| Motor (watts) | 280 | |
| Reversible motor | Yes | |
| rpm | 0.1 to 650 | |
| Digital dispensing | Yes | |
| Dimensions (Drive) | 16.7" x 11.1" x 12.9" (42.4 x 28.2 x 32.8 cm) | |
| Speed control | ±0.1% | |
| No. of Pump heads accepted | 2 | |
| Type of Pump heads accepted | I/P Standard, I/P Easy-Load, I/P High-Performance | |
| Brand | Masterflex | |
| Model | 77420-10 | |
| Manufacturer number | 77420-10 | |
精密數字驅動器提供三種分配模式和精度低維護電機
最小流量為0.0006 LPM（0.0001 GPM），高性能I / P泵頭或26 LPM（6.9 GPM）有兩個疊放I / P易裝或標準泵，最大流量19 LPM（5.0 GPM）頭
圖形液晶顯示四種工作模式，連續運行，定時分配，復制分配量分配。泵的性能不斷。
菜單驅動的界面，可以選擇七種語言，編程及操作
免除毫升每毫升容積分配，0.001?9999毫升;復制1至9,999點膠周期;或SEC時間每次分配周期之間的時間間隔（1到9,999秒）
防滴漏功能，確保免除準確性
在任一方向可逆電機吹掃之前或之后抽泵液管
無刷免維護電機提供±0.1％的速度控制精度1量程比6000
強大的馬達讓你疊2泵頭任何油管制定的流速增加，多通道應用
遠程控制功能，通過水密連接
- 可擴展速度控制輸入0至20 mA，4至20 mA，0?10 V
- 抽水方向需要集電極開路或觸點閉合
- 啟動/停止/清除需要集電極開路或觸點閉合
- 可擴展的轉速計輸出0至20 mA，4至20 mA，0?10 V，集電極開路
型號77420-10 316不銹鋼外殼，陽極氧化鋁基地。制藥，乳品，生物技術，食品和飲料應用的理想選擇。
這些全功能的驅動器給你堅固的性能和精確的數字控制。流體輸送，分配，在實驗室和計量應用過程中，包括制藥，食品飲料，乳品，化工，制造，水處理和工業環境的理想選擇。精密驅動器具有可編程分配間隔，可以讓你設置之間的延遲免除方便，自動點膠周期按時間或按體積。為了提高分配的準確性和防止滴水，可編程防滴漏功能簡要電機反轉點膠周期結束。精確的PWM速度控制（±0.1％）的精度和效率最大化，而 ??無刷電機，為您提供安靜，免維護可靠性。程序校準，確保分配和顯示精度驅動器存儲校準值每管大小。計劃器通過簡單的鍵盤膜，鍵盤鎖定/解鎖功能保護設置，NEMA 4X，IP66額定外殼是完全密封，易清潔，耐常用的清洗和消毒液。可逆的，免維護的無刷電機提供了完整的遠程控制功能，方便地集成到自動化流程。驅動器配有鍵盤膜，易于編程。選擇管的大小，然后輸入所需的流量驅動器鎖在所需的轉速。包括： 6英尺（1.8米）線與IEC 320/CEE22插座。這些模型是特定國家的插頭/電源線出貨，訂貨時請注明最終目的地
?
| 產品規格 | ||
| 最大流量（毫升/分鐘） | 26000 | |
| 最小流量（毫升/分鐘） | 0.6 | |
| 控制類型 | 數字變頻調速 | |
| 流量與I / P 26管（LPM） | 0.01?4.0 | |
| 流量與I / P 26管（GPM） | 0.002至1.1 | |
| 流量與I / P 70管（GPM） | 0.002至2.1 | |
| 流量與I / P 88管（LPM） | 0.02至17.0 | |
| 流量與I / P 82管（LPM） | 0.02?13.0 | |
| 流量與I / P 70管（LPM） | 0.01至8.0 | |
| 流量與I / P 88管（GPM） | 0.005至4.5 | |
| 產品類型 | 的Masterflex I / P驅動器 | |
| 流量與I / P 82管（GPM） | 0.005至3.5 | |
| 流量與I / P 89管（LPM） | 0.03至19.0 | |
| 流量與I / P 73管（LPM） | 0.01至8.0 | |
| 流量與I / P 73管（GPM） | 0.002至2.1 | |
| 流量與I / P 89管（GPM） | 0.007至5.0 | |
| 功率（安培） | 在115 VAC 4.5 2.5在230 VAC | |
| 馬力（HP） | 3/8 | |
| 電機功率（瓦） | 280 | |
| 電機的正反轉 | 是 | |
| 轉 | 0.1至650 | |
| 數字分配 | 是 | |
| 尺寸（驅動器） | 16.7“×11.1”×12.9“ （42.4所述28.2所述32.8厘米） | |
| 速度控制 | ±0.1％ | |
| 接受泵頭號 | 2 | |
| 接受泵頭類型 | I / P標準，I / P易裝，I / P高效 | |
| 牌 | 的Masterflex | |
| 模型 | 77420-10 | |
| 制造商數量 | 77420-10 | |
?
?
?
|
|
| |||||||||||||||||||
