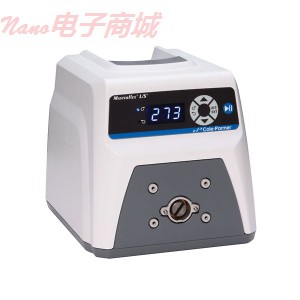

Masterflex 07528-10 L / S精密變速驅動器，遠程輸入6到600轉，90到260 VAC

Masterflex L / S精密變速驅動器，遠程輸入6到600轉，90到260 VAC

Masterflex L/S Precision Variable-Speed Drive with Remote Input; 6 to 600 rpm, 90 to 260 VAC.

易于使用的驅動器提供精確的速度控制和數字顯示轉速理想的計量應用

流量0.06至3400毫升/分鐘（取決于驅動器轉速和泵管尺寸）

三位數的LED顯示屏顯示電機轉速確認速率整定一目了然

抽泵前后可逆電機清洗泵管，泵液流向任一方向

LED指示燈確認電機旋轉方向

強力電機可疊加2個或4個泵頭，多通道應用增加流速

獨立的速度和功率控制（開/關）的同時打開泵的開/關保持速率整定

堆疊式防潑濺ABS塑料外殼，IP33額定

通過驅動器背面上DB9內螺紋連接器遠程控制

速度控制輸入：4至20 mA或0到10 VDC

通過集電極開路或觸點閉合泵方向（CW / CCW）

啟動/停止通過集電極開路或觸點閉合

薄膜鍵盤，易漲前控制速度，方向，開始/停止

這些精確的模擬控制臺驅動器具有強大的馬達，速度顯示，±0.25％的速度控制精確的流量調節計量應用的理想選擇。遠程速度控制要求DB9外螺紋連接器07595-45或07595-47電纜組件。使用遠程連接器，用于控制啟動/停止通過觸點閉合或集電極開路（5 V TTL）或控制啟動/停止通過腳踏開關77595-35。順序控制配件面臨的頁面。

包括： 6英尺（1.8米）電源線與IEC 320/CEE22的插座。這些型號是特定國家的插頭/電源線出貨，訂貨時請注明最終目的地。

Easy-to-use drives offer precise speed control and digital display of rpm—ideal for metering applications

Flow rate 0.06 to 3400 mL/min (depends on drive rpm and tubing size)

Three digit LED display shows motor rpm—confirm speed setting at a glance

Reversible motor—purge tubing before or after pumping; pump fluid in either direction

LED indicators confirm motor direction

Powerful motors let you stack 2 or 4 pump heads for increased flow rates and for multichannel applications

Separate speed and power (on/off) control—maintain speed setting while turning pump on/off

Stackable, splash-resistant ABS plastic housing; IP33 rated

Remote control capabilities via a DB9 female connector on back of drive

Speed control input: 4 to 20 mA or 0 to 10 VDC

Pump direction (CW/CCW) via open collector or contact closure

Start/stop via open collector or contact closure

Membrane keypad for easy up-front control of speed, direction, and start/stop

These accurate analog console drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering applications. Remote speed control requires DB9 male connector 07595-45 or cable assembly 07595-47. Use remote connector for control of start/stop via contact closure or open collector (5 V TTL); or control start/stop via footswitch 77595-35. Order control accessories on facing page.

What's Included:

6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.
