Masterflex 07519-15 L/S 6聲道，六輥筒泵的揚程

Masterflex L / S 6聲道，六輥筒泵的揚程

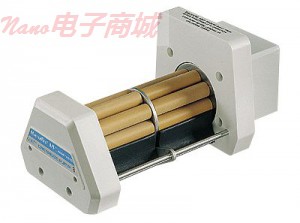

Masterflex L/S 6-channel, 6-roller cartridge pump head.

從多個渠道的同步，低脈動流

流速：0.033?170毫升/分鐘，每通道

插裝泵：1到6大

齒輪比：5:1

閉塞：偏移，切線，可調

驅動器要求：1/10-hp分鐘，600 rpm最大

結構材料：不銹鋼轉子中，魯倫?輥，聚砜兩端

插裝泵接受多種插裝，每個通道實現流同步。

插裝泵快速進出，管子快速變化無需卸下驅動泵頭，

只有硅管和C-Flex 管需要配制尺寸L/S ? 17管L/ S?泵頭

提示：選擇提示更多的輥產生較少的脈動。插裝不包括泵頭

交換小型和大型插裝; 2小等于1大

Synchronous, low-pulsation flow from multiple channels

Flow rates: 0.033 to 170 mL/min per channel

Number of cartridges: 1 to 6 large

Gear ratio: 5:1

Occlusion: offset, tangential, adjustable

Drive requirements: 1/10-hp min, 600 rpm max

Materials of construction: stainless-steel rotor, Rulon? rollers, and polysulfone ends

Cartridge pump heads accept multiple cartridges enabling synchronous flow from each channel. Cartridges snap in and out of the pump head for fast tubing changes—no need to remove pump head from the drive

Only Silicone and C-Flex? tubing formulations are recommended for size L/S? 17 tubing when used in L/S?cartridge pump heads.

Hot Tips:

SELECTION TIPS

More rollers generate less pulsation.

Cartridges are not included with pump head

Interchange small and large cartridges; 2 small = 1 large

產品規格
水泵系列	L / S
產品類型	墨盒泵頭
最大流量（每通道）	170毫升/分鐘
最小流量（每通道）	0.033毫升/分鐘
流程圖	點擊查看
通道號	1至6個
驅動器的要求	1/10，600 rpm最大馬力分鐘
結構材料	魯倫?輥，不銹鋼轉子，聚砜結束
壓路機	6
閉塞	偏移，切，可調
變速比	5:1
最大。墨盒（大）	6  （07519-75墨盒型號）
接受油管	硅膠C-Flex?管配方
品牌	Masterflex
生產編號	07519-15

Specifications
Pump Series	L/S
Product Type	Cartridge for Pump Heads
Max flow rate (per channel)	170 mL/min
Min flow rate (per channel)	0.033 mL/min
Flow Chart	Click to View
No. of channels	1 to 6
Drive requirements	1/10 hp min, 600 rpm max
Materials of construction	Stainless steel rotor, Rulon? rollers, polysulfone ends
Rollers	6
Occlusion	Offset, tangential, adjustable
Gear ratio	5:1
Max. No. of cartridges (Large)	6 (Cartridge model 07519-75)
Accepted tubing	Silicone and C-Flex? tubing formulations
Brand	Masterflex
Manufacturer number	07519-15
