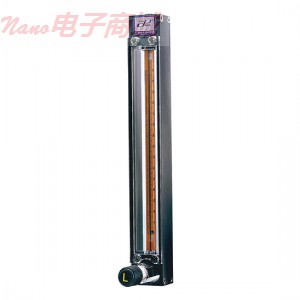

Cole-Parmer P24/1-N112-02ST 變截面流量計

Cole-Parmer P24/1-N112-02ST 變截面流量計

長達150毫米的測量使得這些流量計適合于高分辨率的應用

透明的聚碳酸酯前盾能夠放大比例16％。

垂直切線定位線確保在閱讀浮動閥位時的位置精度

每個流量計安裝在用白色的丙烯酸后板（1/8"厚）的陽極化的鋁框架上的厚壁玻璃流管。

為了確定最小流量值，取最大流量值的十分之一。

選擇具有高精度的閥為優越的流量控制，非常適合于低流量的應用或用于在需要精確的流量控制的應用

16轉高精密閥門設有nonrising閥桿，以更準確地達到想要的設置點

所有流量計配備在標準溫度和壓力（STP）的相關數據表的水和空氣，咨詢我們的應用專家了解更多信息，還可以提供校準數據。

Longer 150-mm scale makes these flowmeters perfect for applications demanding high resolution

Clear polycarbonate front shield magnifies scale 16%.

Hairline accuracy in reading float position is ensured by a vertical tangential locator line.

Each flowmeter consists of a heavy-walled glass flowtube mounted in an anodized aluminum frame with white acrylic backplate (1/8' thick).

To determine the minimum flow value, take one tenth of the maximum flow value.

Select a flowmeter with a high-precision valve for superior flow rate control—ideal for low-flow applications or for any application where you need precise flow control

The 16-turn high-precision valve features a nonrising stem to more accurately hit your desired set point

All flowmeters come with correlation data sheets for water and air at standard temperature and pressure (STP). We can also supply calibration data—call our Application Specialists for more information.
