美國Gilmont GF-1460屏蔽流量計

美國Gilmont GF-1460屏蔽流量計

巧妙的設計使得該儀表在實驗室中得到了廣泛的應用

模塊化的組件使得流量?jī)x的測量范圍非常靈活

各種多個終端連接，以適應工藝要求

非屏蔽流量計在低壓條件下應用良好。這種傳感器端直接連接到對應內徑的流量管的底部。玻璃錐關節是一種包含浮點的備用連接選項（聯系我們咨詢玻璃錐關節相關問題）屏蔽流量計更適

合高壓力環境下的應用而且安裝時需要面板安裝流量計的輔助。末端襯套雙連接能力配備有兩種連接方式管道或螺紋;下面列出管道與螺紋相互之間的匹配情況。屏蔽流量計通過一個20匝微米

閥進行流量監測與精確控制。閥門可調節最大流量（半對數）從0.1到100％，并從0.3到60％提供recise最大流量調節。  關聯的流量計的精度能達到±2％或±1刻度，以較高者為準。微米級

管流量計（型號03210-00 03210-20 03234-50）精確度能達到±5％或±2％的規模，以較高者為準。計算機校準流程圖包括了在STP情況下適用于空氣的漂浮狀況的分析。“R因子”圖表和公

式，可以把現有的量程讀數轉化為其它液體或氣體的量程讀數。也可以通過我們的流量分析軟件訂購產生流程圖，以針對您的特殊需求。 屏蔽模型接受3/8“ID管（規格4和5接受5/8”ID管）

。下面不包括用于非屏蔽模型的的PTFE耦合適配器若需要可單獨訂購。玻璃錐度關節是可根據請求聯系我們的技術專員。注：關于每個流量計的具體壓降，請致電我們的技術人員

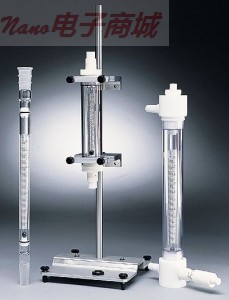

Gilmont Unshielded Flowmeter Sz. 0 Tube

Design makes each meter suitable for a broad range of laboratory applications

Modular components allow for meter flexibility across a wide range of flow rates

Multiple end connections to suit process requirements

Unshielded Flowmeters work well in low-pressure applications. Connect the flowtube end directly to tubing having the proper inner diameter—flowtube outer diameters

are listed below. Glass taper joints are an alternate connection option which slip on the PTFE stops that contain the float (contact our Applications Specialists to

order the glass taper joints).

Shielded Flowmeters are better suited to higher-pressure applications or for installations requiring a panel-mounted flowmeter. End bushings are molded with dual

connection capability—tubing or threaded; listed below are the appropriate tubing and threaded connections provided with each meter.

Shielded Flowmeters with Valves offer flow monitoring along with precise control through an integrated 20-turn micrometer valve. The valve can be adjusted from 0.1 to

100% of maximum flow (semilogarithmic) and provides recise regulation from 0.3 to 60% of maximum flow.Correlated Flowmeters

Extremely accurate—±2% of reading or ±1 scale division, whichever is greater. Flowmeters with micro-sized tubes (models 03210-00, 03210-20, and 03234-50) are

accurate to ±5% of reading or ±2% of scale whichever is greater. Computer calibrated flow charts are included for floats used with both air and water at STP. An “R

factor” chart and formulas are included to convert scale readings for other gases or liquids or for floats other than glass. Order our flow analysis software below to

generate flow charts specific to your individual applications.

Shielded models accept 3/8" ID tubing (sizes 4 and 5 accept 5/8" ID tubing). PTFE coupling adapters for unshielded models are not included—order separately below.

Glass taper joints are available upon request—call our Application Specialists to order.

Note: for pressure drop of each flowmeter, please call our Application Specialists
