IOTech DAQBOARD/3001USB 高精度數據采集板

IOTech DAQBOARD/3001USB 高精度數據采集板

USB和PCI板多功能數據采集和控制應用

這系列高速USB和PCI板提供1 MHz的16位分辨率的A / D。每塊板提供模擬輸入，高速數字I/O，計數器（包括編碼器測量），定時器輸出，以及可選的模擬輸出。內置集點功能提供低至2微秒的低延遲輸出控制。這些高速3000系列板卡滿足最苛刻的數據采集和控制的應用要求。USB數據采集板都配備了一個68針的SCSI和40針信號連接頭。可選的端子板（18806-60）提供簡單的螺絲端子連接。端子板直接安裝附帶的硬件DaqBoard上。四板熱電偶輸入通道也包括每個DaqBoard上的PCI數據采集卡連接到PDQ30擴展模塊，提供配備了68針的SCSI連接器，用于信號連接帶有HDMI擴展連接器（型號18806-28除外）額外48SE/24DE模擬輸入隨著熱電偶測量能力。可選的信號連接配件包括螺釘端子板（18806-62）或BNC連接盒（18806-66）。DaqView ?軟件

輕松設置硬件，通過一個簡單的電子表格風格屏幕采集和顯示參數，無需編程。DaqView是一個全功能的軟件包，它提供實時顯示數字，刻度盤，柱狀圖，條狀圖和范圍樣式格式。直接導出數據到Excel或多種輸出格式，包括文本，WAV，UFFA，UFFB。

USB and PCI boards for multi-function data acquisition and control applications

These series of high speed USB and PCI boards offer a 1-MHz A/D with 16-bit resolution. Each board provides analog input, high speed digital I/O, counters (including quadratrure encoder measurement), timer outputs, and optional analog outputs. Built in set point functionality provides low latency output control as low as 2 μSec. These high speed 3000 series boards meet the most demanding data acquisition and control application requirements.

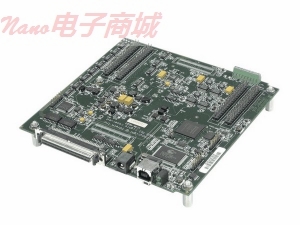

USB Data Acquisition Boards are equipped with a 68-pin SCSI and 40-pin headers for signal connections. Optional terminal board (18806-60) provides easy screw terminal connections. The terminal board mounts directly onto the DaqBoard with included hardware. Four on-board thermocouple input channels are also included on each DaqBoard.

PCI Data Acquisition Boards feature a 68-pin SCSI connector for signal connection along with an HDMI expansion connector (except model 18806-28) for connecting to a PDQ30 expansion module which provides an additional 48SE/24DE analog inputs along with thermocouple measurement capability. Optional signal connection accessories include screw terminal board (18806-62) or BNC connection box (18806-66).

DaqView? Software

Easily set up your hardware, acquisition, and display parameters without programming via a simple spreadsheet-style screen. DaqView is a full-featured software package that provides real-time displays in digital, dial, bar graph, strip chart, and scope style formats. Export data directly to Excel or a variety of output formats including Text, .wav, UFFA, and UFFB.
