Track it 模擬5 V跟蹤?記錄儀顯示，5 V模塊和長壽命電池

Track it 模擬5 V跟蹤?記錄儀顯示，5 V模塊和長壽命電池

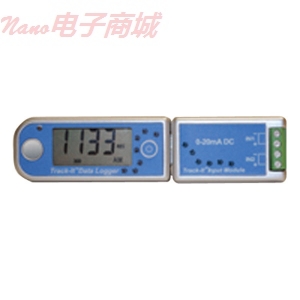

Analog 5 V Track It? Logger with display, 5 V module and long-life battery

堅固整體覆蓋保護骯臟環境中記錄儀

精度±0.5％

記錄500mVDC，1VDC，5VDC，10VDC，或??20mA

能夠記錄溫度

可選為期三年的長期記錄電池

使用這些數據記錄器的各種直流電壓和電流的應用，如工業過程監測，生產力檢查和故障排除。

每個數據記錄器是一個電池供電獨立小巧型數據記錄儀，記錄多達64,000個直流電壓和電流數據樣本。記錄溫度讀數，如果您選擇不連接任何模塊。配置單元在預定的時間和日期開始和停止記錄，或僅在報警條件感覺到。你可以選擇一個標準的電池或長壽命電池。

Track-It?軟件是一個數據記錄器功能豐富的軟件套件。簡單的設置，檢索，解釋和出口所記錄的數據。您可以查看數值數據表或直流電壓/電流讀數相對于時間的圖形表示。把記錄器插進電腦開放的一個USB端口，軟件自動識別記錄器。USB接口電線單獨出售。該軟件還可以通過電腦直接產生的流電壓或電流數據，把您的電腦變成一個實時數據采集系統。使用一鍵導出功能，自動存儲數據導出到Excel ?電子表格。

包括：Track-It?軟件和電池

Rugged overall cover protects logger in dirty environments

±0.5% accuracy

Records 500mVDC, 1VDC, 5VDC, 10VDC, or 20mA

Capable of recording temperature

Optional three-year battery for long-term recording

Use these data loggers for various DC voltage and current applications, such as monitoring industrial processes, productivity checks, and troubleshooting. Each data logger is a battery powered stand alone compact data logger that records up to 64,000 samples each of DC voltage and current data. Record temperature readings if you choose by not connecting any modules. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. You can choose from a model with a standard battery or one with a long-life battery.

Track-It? software is a features-packed software package that is included with every data logger. It allows for easy setup, retrieval, interpretation and export of the recorded data. You can view a numerical data table or graphical representation of DC voltage/current readings relative to time. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger, USB interface cable sold separately. The software can also turn your PC into a real-time data acquisition system by allowing you to stream voltage or current data as it occurs directly to your PC. Use the one click export function to automatically export stored data into an Excel? spreadsheet.

What's Included:

Track-It? software and battery
