Track it 溫溫度數據記錄儀顯示和標準電池

Track it 溫溫度數據記錄儀顯示和標準電池

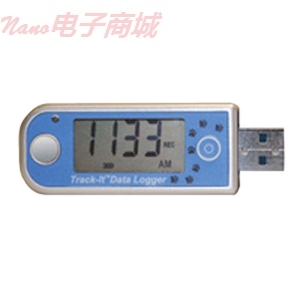

Track It? temperature data logger with display and standard battery

可選的為期三年的長期記錄電池

高精確度，可重復性

多用戶可編程顯示器

寬溫度范圍0到185°F（-20至85°C）

可編程高，低報警

通過USB直接連接

軟件提供了圖形工具來檢查和分析的數據記錄

在眾多的應用中使用這些高精度的數據記錄儀。從監控食品運輸跟蹤暖通空調，制藥，或博物館環境的溫度和濕度條件，這些小型數據記錄器將適合任何地方，使用簡單。每個數據記錄器是一個電池供電的獨立的記錄器,記錄64000樣品的溫度和相對濕度數據。從模型中選擇一個標準的電池或長壽命電池。輕松配置使用Track-It?軟件。把記錄器插進電腦開放的一個USB端口，軟件自動識別記錄器。USB接口電線單獨出售。配置在預定的時間和日期開始和停止記錄，或僅在報警條件是感覺到。樣本存儲率可以設置從1個樣品每2秒至1個樣品每24小時。使用時，防濺式防護罩保護日志記錄器。

包含：Track-It?軟件和電池

Optional three-year battery for long-term recording

High accuracy and repeatability

Multiple user programmable displays

Wide temperature range 0 to 185°F (-20C to 85°C)

Programmable high and low alarms

Direct USB connection

Software provides graphing tools to examine and analyze the data record

Use these high-accuracy data loggers in a multitude of applications. From monitoring food transport conditions to keeping track of temperature and humidity in HVAC, pharmaceutical, or museum environments, these compact data loggers will fit anywhere and are simple to use. Each data logger is a battery-powered stand-alone logger that records up to 64,000 samples each of temperature and relative humidity data. Choose from a model with a standard battery or long-life battery.

Easily configure units using the included Track-It?software. Simply plug the logger into an open USB port on your PC and the software automatically identifies the logger; USB interface cable sold separately. Configure the unit to start and stop recording at a predetermined time and date or only when an alarm condition is sensed. The sample storage rate can be set from 1 sample every 2 seconds to 1 sample every 24 hours. A splash-proof protective cover protects the logger when in use.

What's Included:

Track-It? software and battery

產品規格
產品類型	溫度數據記錄儀
溫度精度	±1°C從0到50°C /±2°C從-20?85°C
溫度分辨率	±0.8°F（±5°C）
使用溫度范圍	（emdash）4至185°F  （-20至85°C）
顯示	用戶可編程LCD顯示數據值，工程單位，報警，記錄模式，電池狀態，時間/日期，內存
記憶	32,000或64,000個數據點 （根據配置）
電池壽命	標準電池：鋰電池CR2032，1分鐘1年壽命。的采樣率 LONG_LIFE電池：EF651625，3年生活在1分鐘采樣率
采樣率	每2秒至1，每24小時，用戶??可配置
尺寸	1-5/32“寬x 3-21/32”高x 3/4“深 （29 X 93 X 19毫米）
品牌	Track It
出廠編號	TI-TEMP/DIS/SB



?

Specifications
Product Type	Temperature Dataloggers
Temp accuracy	±1°C from 0 to 50°C/ ±2°C from -20 to 85°C
Temp resolution	±0.8°F (±5°C)
Temp range	(emdash)4 to 185°F (-20 to 85°C)
Display	User-programmable LCD: indication of data value, eng units, alarms, record mode, battery condition, time/date, memory
Memory	32,000 or 64,000 data points (based on configuration)
Battery life	STANDARD BATTERY:Lithium CR2032, 1-yr life at 1-min. sample rate LONG_LIFE BATTERY: EF651625, 3-yr life at 1-min sample rate
Sampling rate	One every 2 seconds to one every 24 hours, user configurable
Dimensions	1-5/32" W x 3-21/32" H x 3/4" D (29 x 93 x 19 mm)
Brand	Track It
Manufacturer number	TI-TEMP/DIS/SB
